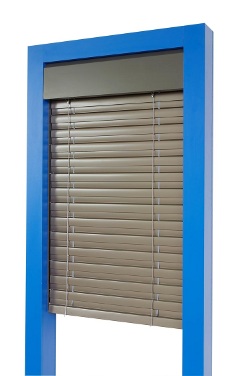

The Z-90 external blind with guiding in guiding rails enables the smooth regulation of light intensity in the interior and at the same time shading up to 85% of the sun’s radiation, and thus preventing the interior overheating.
The Z-shape, 90 mm wide slat with rolled sealing ensures noise-free operation of the blind, and moreover it is able to darken interiors nearly as much as roller blinds.
Sealing in guiding parts also contributes to the silent operation of blinds.
Advantages of external blinds Z-90
- external blind with the best shading results
- noise-free operation of the blind
- high resistance of slat against damage by strong wind
- 19 colour shades on stock
- more resistant to strong wind and are less noisy than blinds with wire-guiding
The blind is controlled by a crank handle or electric motor. Greater convenience can be achieved by connecting to automatic sun/wind controls.
Basic technical parameters:
| Maximum width of blind: | 400 cm |
| Maximum height of blind: | 400 cm |
| Maximum width of connected blinds: | 8 bm (electric control) |
| Type of blind | Min. width of blind | Max. surface of blind |
| Z-90 operation by crank handle | 40 cm | 9 m2 |
| Z-90 operation by motor | 60 cm (55) | 14 m2 |
Connecting blinds:
It is possible to connect more blinds to one control. However, if the motor is placed in the middle of the assembly there, is a maximum of 3 blinds to one control.
The additional rule that there may be at most 5 bearings (revolving mechanisms) on each side of the motor must also be observed.
Material of blinds:
slats - aluminium, two-sided, colour-adjusted, rolled into a Z-shape with rolled sealing profile; width of slats: 90 mm
upper part - 56 x 58 mm of zinc-coated steel plate or extruded aluminium
lower part – extruded aluminium across width of slats, in any colour according to the RAL colour swatch or in elox
guiding parts – 20 x 20 mm of extruded aluminium, in any colour according to the RAL colour swatch or in elox
cover plate – bent 1,5 mm or 2 mm thick aluminium plate, in any colour according to the RAL colour swatch or in elox
fabric supports and strips – special synthetic fibres, grey or black
